CS Brooke 6.4 in. Milled Base Bolt (p. 90)

An armor punching bolt using the wrought-iron milled sabot.

Diameter: 6.3 inches
Gun: 6.4-inch Brooke Rifle
Length: 9 7/8 inches
Weight: About 75 pounds
Construction: Bolt
Sabot: Brooke milled base, wrought-iron
Fuzing: None

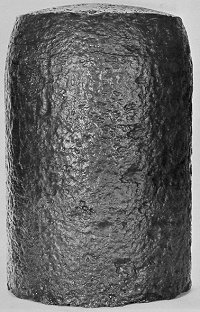

CS Brooke 6.4 in. Milled Base Bolt (p. 90) — © Jack W. Melton Jr.
