Home›Heavy Artillery Projectiles›CS Brooke 6.4 in. Bolt (p. 74)

Confederate · Brooke, Sub-pattern III

CS Brooke 6.4 in. Bolt (p. 74)

CONSTRUCTION: Bolt

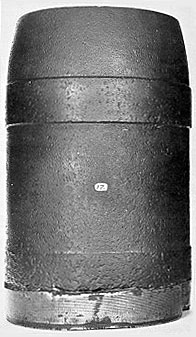

This unfired armor punching bolt shows quite plainly the machining marks on the disc sabot.

Diameter: 6.3 inches
Gun: 6.4-inch Brooke Rifle
Length: About 10 1/4 inches
Weight: About 74 pounds
Sabot: Copper, Brooke Ratchet Disc
Fuzing: None

CS Brooke 6.4 in. Bolt (p. 74) — © Jack W. Melton Jr.
