Confederate · Brooke, Sub-pattern III

CS Brooke 30 pdr Shell (p. 71)

CONSTRUCTION: Common Shell

This specimen has the letters "W. C." stamped into the bottom of the sabot.

Diameter: 4.1 inches
Gun: 30-pounder Rifle, 4.2-inch Caliber
Length: 13 inches
Weight: 27 pounds 11 ounces
Sabot: Copper, Brooke ratchet disc
Fuzing: Copper Fuze Plug

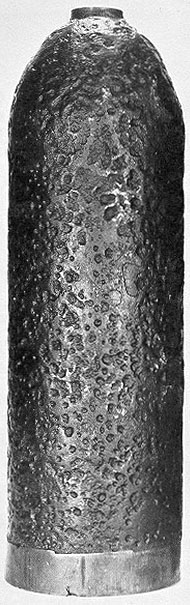

CS Brooke 30 pdr Shell (p. 71) — © Jack W. Melton Jr.
